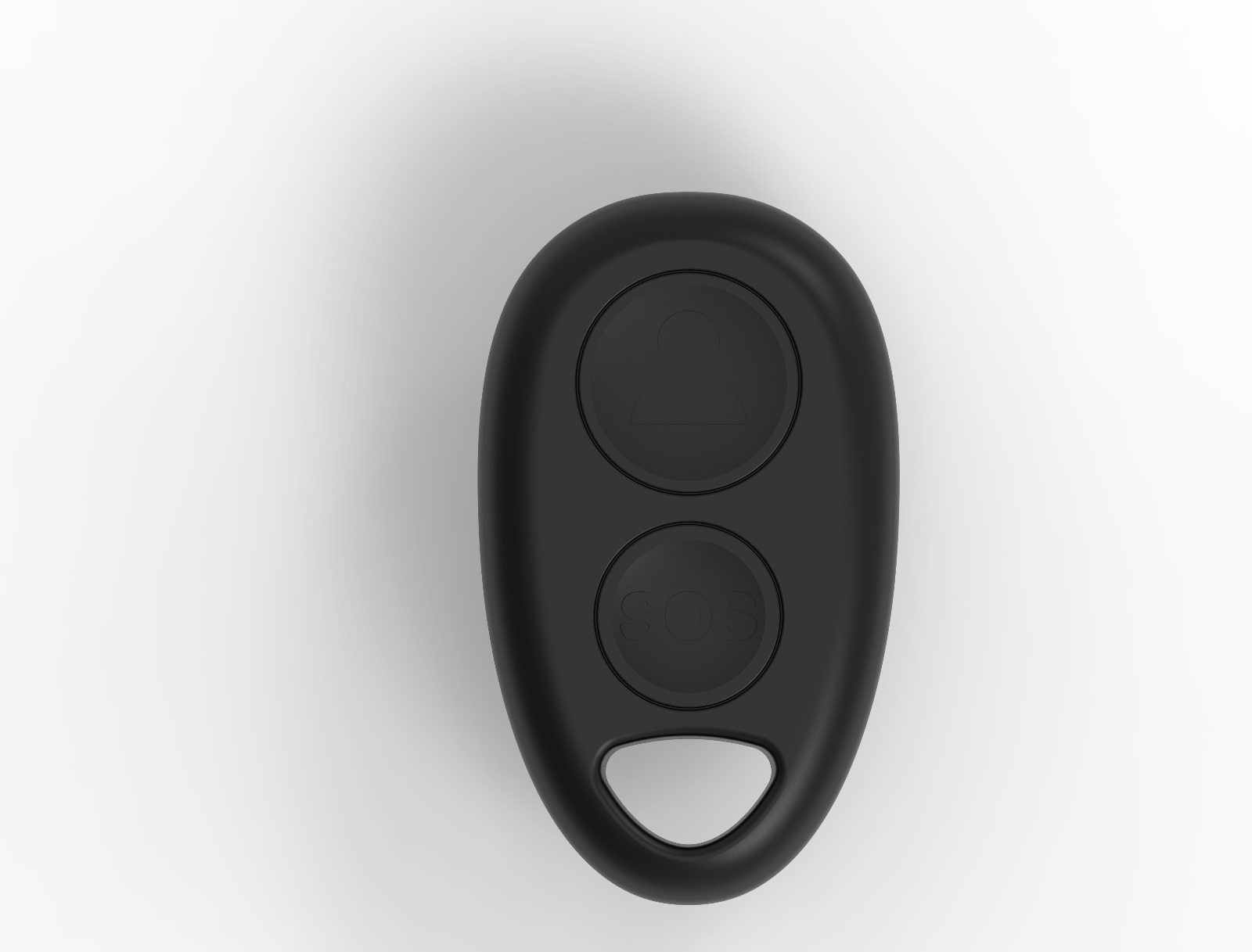

T-Button - Advanced Wireless Fleet Management

Our compact BLE 5.1 wireless solution for driver identification and emergency alert system

Compact Size

58mm×34.3mm×9.9mm small form factor makes it easy to carry

Long Battery Life

Replaceable CR2032 battery with 500-600 days standby time

OTA Updates

Firmware over the air updates for hassle-free maintenance

BLE 5.1

Advanced Bluetooth technology with long-range transmission

How the T-Button System Works

A versatile 2-in-1 wireless accessory for comprehensive fleet management

1

Driver Identification

Each driver is assigned a unique T-Button with a digital signature. The wireless button connects to your EasiTrack GPS tracker via BLE technology, automatically identifying the driver operating the vehicle. This creates a complete digital record of who drives which vehicle and when.

Driver Identification
2

Panic Button / SOS Alert

The T-Button doubles as an emergency panic button, giving drivers a quick way to alert dispatchers in case of emergency. When pressed, an immediate alert is sent to the command center with the vehicle's exact location, allowing for rapid response in critical situations.

Panic Button
3

Beacon Function

The T-Button can also function as a beacon, transmitting a signal at regular intervals. This allows for asset tracking and fleet monitoring with transmission ranges of up to 490m (1600 ft) in open field conditions when using BLE 5.1 Long Range mode.

Beacon Function

Technical Specifications

Model Name T-button
Dimensions 58mm×34.3mm×9.9mm (2.28" ×1.35" ×0.38")
Weight 13.2g (0.47oz, Battery Included)
Battery Replaceable CR2032 220mAh
Battery Life
  • 600 days @ 50 press/day (0 dBm, 25℃)
  • 550 days @ 50 press/day (4 dBm, 25℃)
  • 500-550 days in beacon mode (interval: 10s)
Operating Temperature -30℃ ~ +70℃ (-22°F ~ 158°F)
Transmission Range
  • Up to 90m (290 ft) with BLE 5.1
  • Up to 490m (1600 ft) with BLE 5.1 Long Range
Additional Features Built-in Temperature Sensor (±2℃)
Protection Rating IP41

Benefits of the T-Button System

Enhance safety, efficiency, and accountability across your fleet operations

Enhanced Security

Prevent unauthorized vehicle use by ensuring only authorized drivers with proper credentials can operate your vehicles. The unique digital signature for each driver helps reduce theft and misuse.

Automated Timekeeping

Eliminate manual timesheets and human error with automatic recording of driver hours. The system creates accurate digital records of start/end times, simplifying payroll processing.

Driver Accountability

Create a culture of responsibility by connecting specific drivers to vehicles and their associated activities, improving driver behavior and performance across your entire fleet.

Emergency Response

The panic button function allows drivers to quickly signal for help in emergency situations, improving driver safety and providing peace of mind for both drivers and fleet managers.

Streamlined Operations

Improve dispatch efficiency by knowing which drivers are available and on duty. The long battery life and small form factor ensure minimal maintenance and maximum convenience.

Regulatory Compliance

Maintain accurate records of driver hours to help comply with DOT regulations and hours-of-service requirements. Digital documentation helps minimize the risk of compliance violations.
